Mixing tank can also be called water phase cans, widely used in coatings, pharmaceuticals, building materials, chemicals, pigments, resins, food, scientific research and other industries. The equipment can be based on the user's product requirements of the selection of carbon steel, stainless steel and other materials, as well as the installation of heating, cooling devices to meet the different needs of the process and production. The heating structure is jacketed electric heating, coil heating, the equipment structure design is reasonable, advanced technology, durable, and has a simple operation, easy to use and so on, is the ideal investment, production fast, high income chemical equipment.

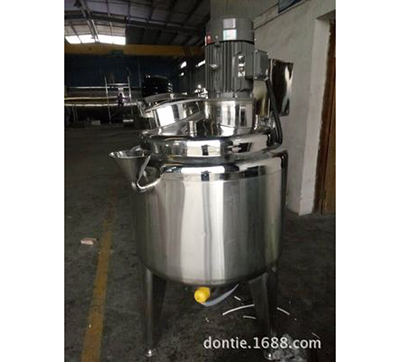

Mixing tank means that the material is stirring, mixing, reconciling, homogenization, etc., stainless steel mixing tank according to the requirements of the production process design and configuration can be standardized and humane. Mixing tank in the mixing process can be achieved feed control, discharge control, mixing control and other manual automatic control. Mixing tank structure Mixing tank by the mixing tank, stirring tank cover, stirrer, support, transmission, shaft seal device, etc., can also be configured according to process requirements heating device or cooling device.

Mixing tank, stirring tank cover, stirrer, shaft seal and other materials can be selected according to different requirements of the use of carbon steel or stainless steel and other materials to produce.

Mixing tank and stirring tank cover can be sealed with a flange seal or welding connection. Mixing tank and stirring tank cover can be opened according to process requirements, discharge, observation, temperature measurement, pressure measurement, steam fractionation, safe venting process pipe hole.

The upper part of the stirring tank is equipped with a transmission (motor or reducer), and the agitator in the stirring tank is driven by the drive shaft.

Shaft seal device can be used machine seal or packing, labyrinth seal and other forms (according to user needs to determine).

As the user requirements of different production processes, the mixer can be equipped with pulp, anchor, box, spiral and other forms. If you have any other requirements can contact the factory, another design.
